White Shade Chemical Fume Hood Lab Hydrofluoric Acid Fume Hoods with Microcomputer Control System
Product Description1:
Introducing the Lab Hydrofluoric Acid Fume Hoods
The Chemical Fume Hood is the perfect solution for safely capturing and removing hazardous vapors, fumes, and dust generated from laboratory chemical processes. Its innovative design features a stainless steel construction that is strong and durable, providing a reliable and safe work environment. The hood is powered by a 50W motor and generates minimal noise, with a noise level of ≤60dB. It is equipped with a microcomputer control system for precise monitoring and operation.
The Chemical Fume Hood is designed to provide superior protection for workers who handle hazardous materials in the lab. Its stainless steel construction ensures that it is resistant to corrosion and other chemical reactions, making it ideal for use in a wide range of laboratory applications. The hood's 50W motor provides sufficient power for efficient operation, while the noise level of ≤60dB ensures that it does not disturb the work environment. The microcomputer control system allows for precise monitoring and operation.
The Chemical Fume Hood is the perfect solution for any laboratory that needs to safely capture and remove hazardous vapors, fumes, and dust. Its innovative design, reliable construction, and precise operation make it perfect for ensuring safety in the lab. Whether it is for educational, industrial, or medical use, the Chemical Fume Hood is the perfect choice for a safe and effective working environment.
Features:
- Product Name: Lab Hydrofluoric Acid Fume Hoods
- Warranty: 1 Year
- Structure: Horizontal
- Installation Type: Wall Mounted
- Control System: Microcomputer
Technical Parameters:
| Attribute | Value |
| Control System | Microcomputer |
| Warranty | 1 Year |
| Product Name | Lab Hydrofluoric Acid Fume Hoods |
| Voltage | 220V |
| Airflow | 400m³/h |
| Installation Type | Wall Mounted |
| Size | Customized |
| Material | Stainless Steel |
| Color | White |
| Power | 50W |
laboratory furniture by BOKA is an integrated system that organizes space in modern laboratories and maximized usage of vertical space.all steel furniture components can be easily reconfigured without costly and disruptive traditional remodeling.
Convenient,ergonomic and cost effective mobile and fixed solutions ready for your new space.
Laboratory working table in woodworking benches detail:
| Name | Chemical All Steel Ventilation Cupboard |
| Dimension | customer optional |
| Color | Customer optional |
| Structure | All steel structure with C-frame,H-frame,floor mounted all are available . |
| Framework material | standard 60*40*1.5mm square steel tuve spraying epoxy powder coating.other request by customer is available. |
| Body Material | 1.0mm/1.2mm/1.5mm cold-rolled steel sheet/stainless steel/galvanized steel sheet/PP(polypropylene)/FRP(fiber reinforce plastic)all available. |
| Worktop | 1)15mm/19mm/25mm thickness epoxy resin tops,black,grey,white color for option 2)13mm/16mm/19mm/25mm thickness Phenolic Resin tops,black,grey,white color for option. 3)1.0mm/1.2mm 304# stainless steel cover with 18mm thickness MDF as a worktop. 4)20mm thickness laboratory grade ceramic tops .black color 5)20mm/30mm/50mm marble tops black color. |
| Cabinet | for a better apperance and high efficient working station .we suggest lab furniture provide some cabinet .our standard cabinet size is 400*450*600.600*450*600 .other cabinet size should be customized and approval.with the wheels of belt brake. |
| Handle | 304# stainless steel/Aluminum/Plastic handle are available |
| Reagent Shelf | Module steel column/Aluminum column,12mm tempered glass as the layer and other material board is optional,like epoxy resin,phenolic,marble,granite,stainless steel |
| Sink | PP sink,epoxy resin sink,stainless steel sink for your option. |
| Faucet | Single taps/two way taps/trip taps for cold water cold&hot water.pur water taps,sensor taps all is up to your choice.Stainless steel material .brass body with ceramic valve are with epoxy resin powder coating. |
| Socket | water proof lab furniture socket.explossion proof socket .standard socket used in your country is for your option |

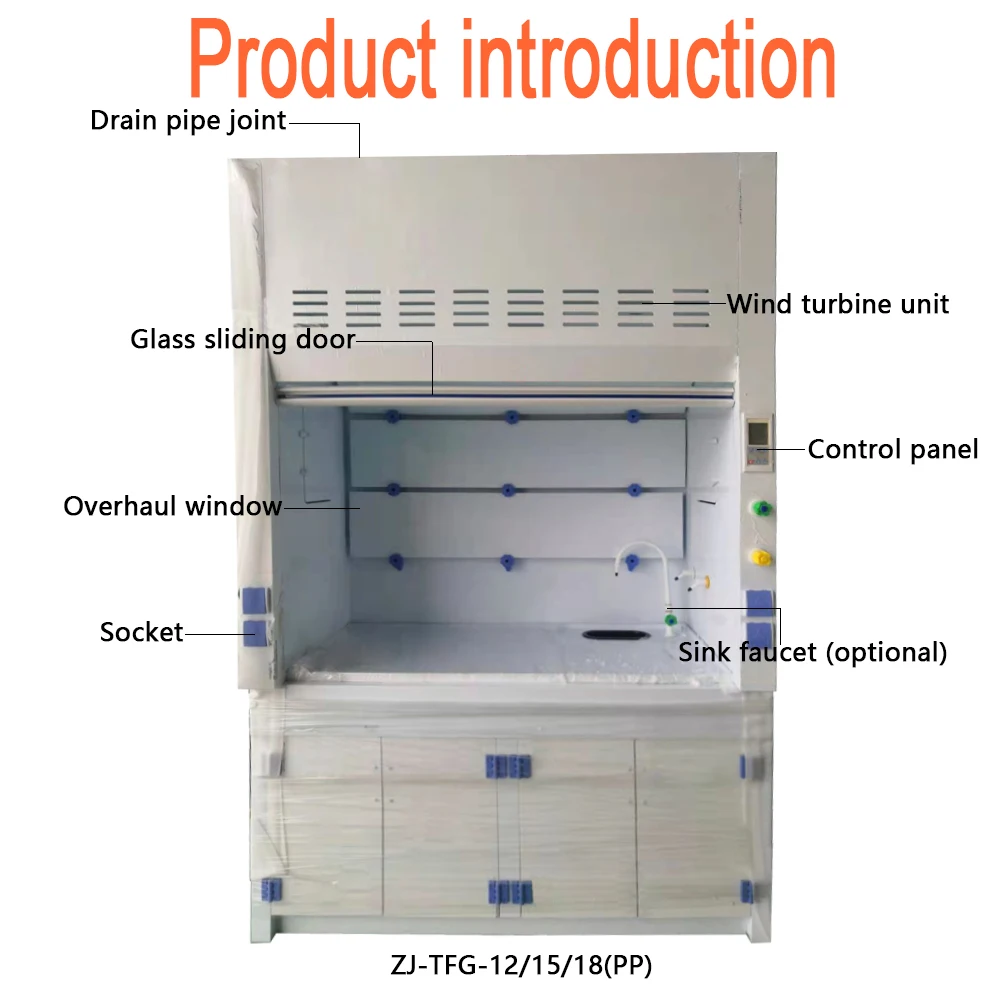

1.Hood body&base cabinet: 8-12mm porcelain white PP (polypropylene) sheets, welded into one piece, welded by the same color and homogeneous electrode.
2.Standard Work surface: 12mm porcelain white PP (polypropylene) sheets.
***Optional: Phenolic Resin/Epoxy Resin/Stainless Steel/Ceramic/Trespa/Granite/Marble. 3.Controller: Intelligent switch with digital display, multiple controls such as power on, fan, lighting, socket, sterilization, damper, etc. 4.Glass sash: Use explosion-proof 5mm tempered glass, PP material sash handle. It is designed by the weight balance method in the mechanical principle, and the left and right are connected by synchronous wheels. 5.Lighting: Equipped with LED 30W purification lamp, the luminosity is greater than 300LUX, 6.Fume hood liner and Baffle: Use 8mm porcelain white PP (polypropylene) plate. 7. Junction box: The junction box with circuit board and AC contactor makes wiring more convenient. Suitable for 110V-230V voltage. 8. Standard accessories: 1x bench-mounted single water tap 1x PP oval cupsink 4x Electrical Outlets 1x 250 or 315mmφ PP hood. 9.Optional accessories: Remote Controlled Fixture gas&water faucet Explosion-proof light Distillation Grid Kit Acid and flammable base cabinet Ductwork Exhaust blower
| | | | |
External Dimension (W*D*H)(mm) | | | |
Internal Dimension (W*D*H)(mm) | | | |
Base Cabinet Dimension (W*D*H)(mm) | 1200*800*850 (Can remove) | 1500*800*850 (Can remove) | 1800*800*850 (Can remove) |
| | | | |
| | |
Applications:
The Lab Hydrofluoric Acid Fume Hoods brand SUCLAB model HZJ011 is a high-performance safety device made of stainless steel. It is certified to ISO9001 and ISO14001 standards, offering reliable protection against hazardous substances. The minimum order quantity is just 1 STE, while the price is available for negotiation. The product is packed in export plywood package and usually delivered within 15 days with a variety of payment methods, including T/T, D/A, L/C, D/P, MoneyGram. It has a noise level of ≤60dB and an airflow of 400m³/h. The hood is available in white color and can be customized according to the customer's needs. The monthly supply ability is up to 10000 sets.
Customization:
SUCLAB Lab Hydrofluoric Acid Fume Hoods , Model No. HZJ011, is the perfect choice for containing and exhausting hazardous fumes and vapors created in a laboratory setting. It is certified with ISO9001 and ISO14001, ensuring the highest quality production. With a minimum order quantity of 1 STE, the price is negotiable and the delivery time is 15 days.
This Chemical Fume Hood is exported with a plywood package, and payment is accepted in T/T, D/A, L/C, D/P, MoneyGram. The supply ability is up to 10000 Sets/Month. The power is 50W, voltage is 220V, and the material is stainless steel. It has a horizontal structure and size is customizable.

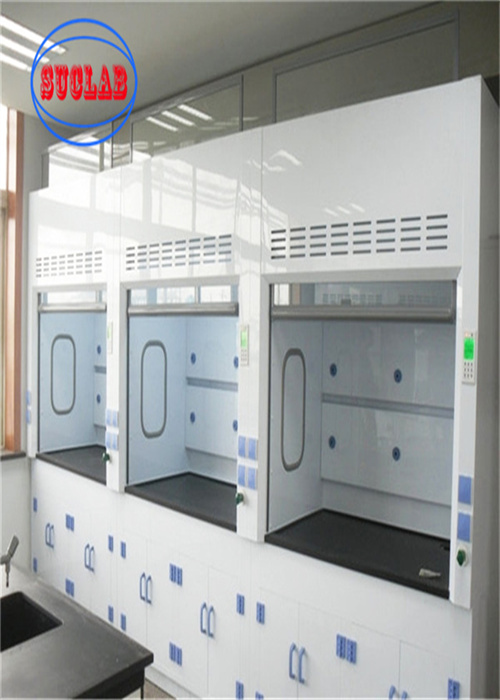

Product Images
Support and Services:
Technical support and service for Chemical Fume Hood are available for customers. The services include:
- Installation and maintenance of Lab Hydrofluoric Acid Fume Hoods
- Replacement of broken parts and components
- Access to technical information and manuals
- Troubleshooting advice and support
- On-site visits and inspections
Packing and Shipping:
Packaging and Shipping of Chemical Fume Hood
Chemical Fume Hoods should be packaged in a way that will protect them from damage during shipping. All parts must be securely packaged in bubble wrap or similar material, and labeled with the relevant product information. The packaging should also include any relevant safety instructions. It is important that all parts are clearly identified and that the packaging is strong enough to protect them from damage during transportation.
When shipping Chemical Fume Hoods, it is important to use a reliable carrier. Make sure to provide the carrier with the relevant product and safety information, as well as any special instructions for handling the shipment. It is also important to insure the shipment in case of any damage during transit.
