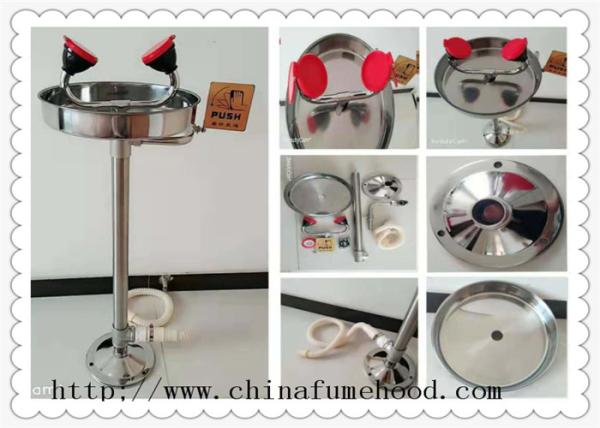

    Chemical Resistant Lab Fittings Eye Wash Station Anti Corrosion Lightweight

    Ask Lasest Price
    Brand Name : SUCLAB
    Model Number : standard
    Certification : SEFA SGS ISO9001 ISO14001 OHSAS
    Price : negotiation
    Payment Terms : TT LC, Western Union
    Supply Ability : more than 10000 pcs per month
    Delivery Time : 1 5working days
    • Product Details
    • Company Profile

    Chemical Resistant Lab Fittings Eye Wash Station Anti Corrosion Lightweight

    CE Approved Factory Stainless Steel Floor Laboratory Fittings Lab Safety Emergency Eyewash

    Quick Details
    Place of Origin:
    Guangdong, China
    Brand Name:
    SUCLAB
    Model Number:
    SUCLABE005
    Color:
    Bright silver
    Material:
    304SUS
    Surface treatement:
    Yellow painting
    Switch:
    Handle push and pull
    Application:
    Chemical plant
    Size:
    2160*600mm
    Material of dust cap:
    PP
    Spray head:
    Soft rubber
    Installation:
    Floor standing30days

    eye washe

    r


    Technical Data:


    Head10” stainless steel
    Eye Wash NozzleABS spraying with 10” ABS waste water recycle bowl
    Shower Valve1” 316stainless steel ball valve
    Eye Wash Valve1/2” 316 stainless steel ball valve
    Supply1 1/4" FNPT
    Waste1 1/4" FNPT
    Eye Wash Flow ≥11.4 L/Min, shower flow≥75.7 L/Min
    Hydraulic Pressure0.2MPA-0.6MPA
    Original WaterDrinking water or filtered water
    Using EnvironmentPlaces where has hazardous substance splashing, such as chemicals, hazardous liquids, solid, gas and so on.
    Special NoteIf the acid concentration is too high, recommend to use 316 stainless steel.
    When using ambient temperature below 0℃, use antifreeze eye wash.
    The eye wash & shower is made of high quality 304 stainless steel.
    Can install anti-scalding device to avoid the media temperature is too high in the pipe after the sun exposure and cause user scalding. The standard anti-scalding temperature is 35℃.

    Description:


    * Combination of eye wash and shower

    * Can be used in cold area but need to take antifreezing measures in advance

    * Can be used in acidity place


    Technical Date:


    * Material: Stainless Steel

    * Head of Shower: 10" Stainless Steel Head

    Head of Eye washes: Stainless Steel, with 10" Stainless Steel Basin in warning yellow

    * Valve of Shower:1" anticorrosion brass galvanized ball valve

    Valve of Eye Washes: 1/2" anticorrosion brass galvanized ball valve

    * Water inlet&outlet: 1" Stainless steel valve with inside screw thread

    * Flow Control: Change with the pipe pressure but no more than 114L/ Min in specified pressure

    * Hydraulic Pressure: 0.2MPA-0.4MPA

    * Original Water: Clean or leached water

    * Operating environmqent: For almost industrial situation need to clean eyes or body

    * Pls take antifreezing measures well if used in cold area.

    * Can be used in acidity enviroment.

    A
